Softdial Scripter™ - Step Library

Alert Monitor Step

Sends a message to the Alert Monitor application when an alertable event occurs.

Inputs

1.	Message	(Mandatory)	The alert message to present
2.	Facility	(Optional)	The module that caused the alert. If left blank, this defaults to "Scripter"
3.	Severity	(Mandatory)	The severity of the event: 1. Notification 2. Warning 3. Error 4. Fatal Error

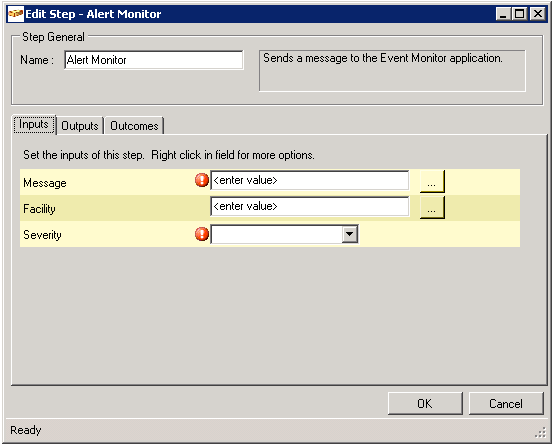

Fig. 1 - Alert Monitor Step - Inputs

Outputs

None

Outcomes

1.

Next

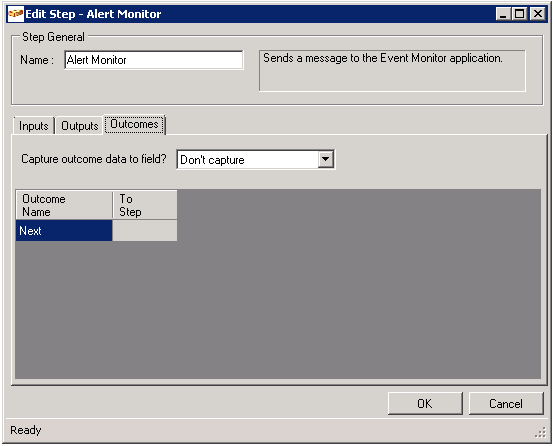

Fig. 2 - Alert Monitor Step - Outcomes
