Remote Management and Diagnostics

By default, STG is listening for connection on port 6511 (this can be changed if required). So from a Windows system, you can connect using a command line such as

telnet servername 6511

where servername is the network name for the machine hosting STG (Fig. 1).

Fig. 1 - Telnet Connection

If the connection is successful you will see a greeting message with some basic details of the server and the version of STG (Fig. 2).

Fig. 2 - Telnet Greeting

At this point, you may enter commands which will provide diagnostic information or change configuration settings.

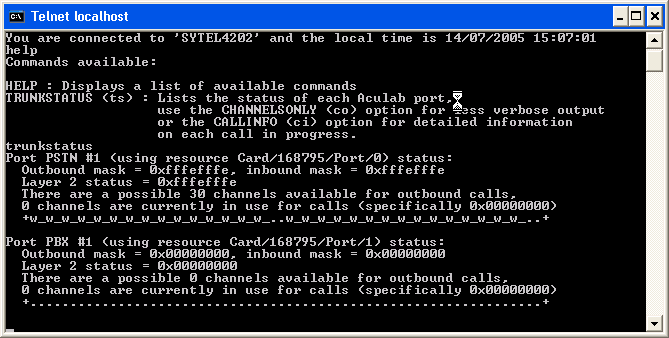

As of 9.1.0.48 there is only one command provided, which is trunkstatus (Fig. 3). You may alternatively use the short form ts. This will provide a list of the configured ports together with some status information and a line detailing the state of each channel on that port.

Fig. 3 - Telnet trunkstatus

The following 2 optional switches can be specified:

1) channelsonly

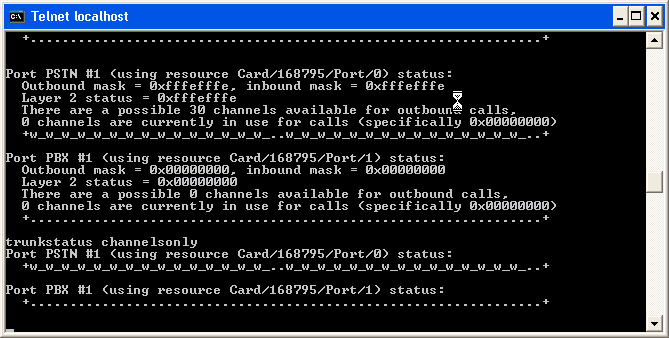

If channelsonly (or its shortened form of co) is specified then the output is less verbose, just listing the channel states for each port making it easier to see an overview of port/ channel status (Fig. 4).

Fig. 4 - Telnet channelsonly

Using this switch, the channel state is displayed on a single line, and 32 two character pairs are used, each representing one of the possible channels on an E1 port

On T1, therefore, some of them are never used, though they are still displayed.

For channels which cannot be used, .. is displayed.

For channels which can be used:

first character

Indicates if the channel is waiting for an incoming call. Possible values are:

• w (waiting)
• _ (not waiting)

It is possible for a channel to be waiting for an incoming call regardless of the channel being used for an outgoing call at the same time.

second character

Gives the state of any call in progress on the channel (incoming or outgoing). The following table lists the possible states and the characters used to indicate them:

State	Char	The call is...
Accepting	a	in the process of being answered
Connected	O	connected (outgoing)
ConnectedIncoming	I	connected (incoming)
Dialing	D	being dialed (outgoing)
Idle	Z	gone idle but not yet released
IncomingOffering	f	detected, but not yet accepted (incoming)
Initialising	n	created, but is not yet being dialed (outgoing)
Released	X	released - the channel is in a delay period before being reused
Ringback	R	alerting at the far end and an ISDN signal to that effect has been received

2) callinfo

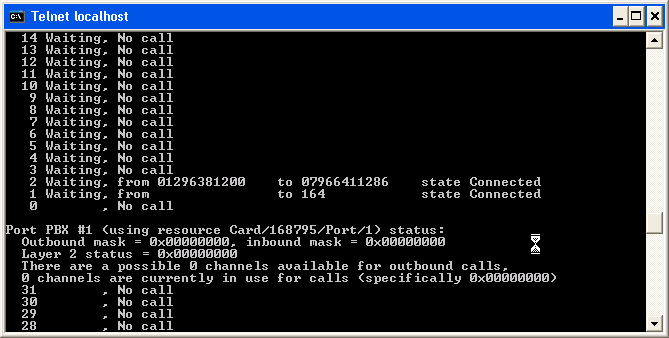

If the callinfo option (or its shortened form of ci) is used the output becomes more verbose, listing for each channel details of any call in progress (source and destination addresses, state) (Fig. 5).

Fig. 5 - Telnet callinfo

The full state names are displayed rather than the single character versions.
