Dialing Tuning
From V10.6.847 - the legacy Softdial Campaign Manager™ Windows client is no longer available, via install or download.
The Dialing Tuning parameters govern the performance of the Softdial CallGem™ when running a Predictive campaign:

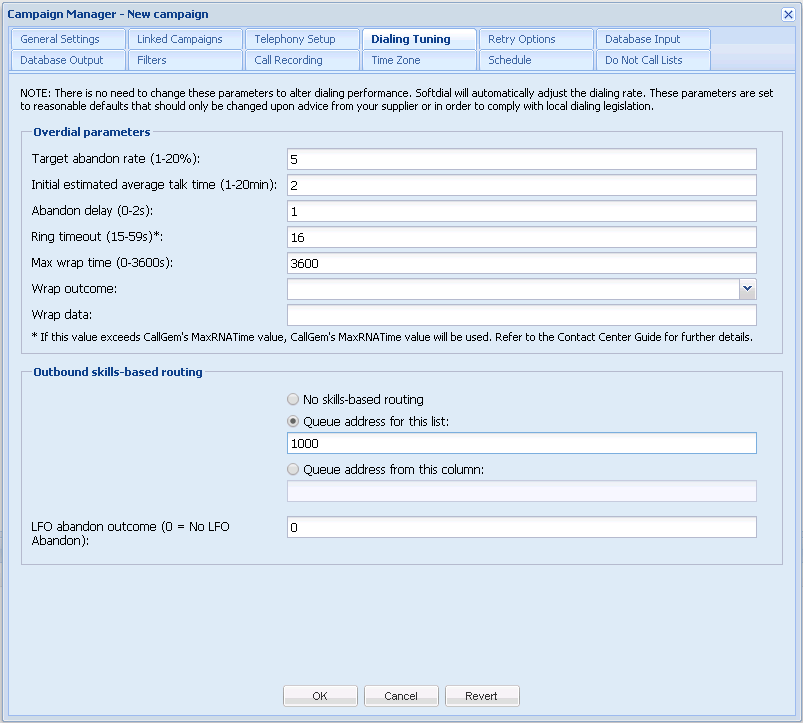

Fig. 1 - Dialing Tuning - Web client
The configuration areas on this tab/ page are explained below:
Overdial parameters
Sytel would not normally recommend that these parameters be changed as Softdial CallGem™ self-regulates in order to achieve optimum performance. These parameters are exposed in order that customers may be able to force compliance with local legislation should this be required.
Ring Timeout
The Ring Timeout setting is limited by the MaxRNATime registry setting (see Registry Settings) which is set to 22 secs by default. Setting this value to a higher value than the MaxRNATime setting will not be effective, even though the setting appears to be accepted in the UI. For further explanation of the concepts involved here and insight into what these factors actually mean to dialing performance, please see Algorithm Adjustment.
Wrap options
When the customer end of the call is hung up, the agent enters a period of wrap time. See The Calling Cycle.
In order to impose a limit on how long agents are allowed to spend in wrap, these settings allow a call to be disposed automatically from CallGem when the Max wrap time threshold is reached.
The following settings are available:
- Max wrap time - number of seconds allowed for wrapping (0 - 3600). 0 means there is no maximum wrap time.
Max wrap time is set for a call on entry to the queue. Changes to queue configuration will not apply retrospectively to calls already in queue.
- Wrap outcome - if max wrap time is set, and reached, the agent outcome configued here will be entered in the database
- Wrap data - if max wrap time is set, and reached, text entered here (or no text, i.e. <empty string>, if this field is left blank) will be included in the Data (DT) parameter of the Transaction Complete [TC] message. This can be used to mark a (pre-existing) column in the database to indicate that this threshold was reached.
Any data collected during the call by the agent (using Scripter, for example) will be discarded, and only data entered here will be included.
The format for a Max Wrap Data entry is as follows:
<MagicXMLDocument xmlns="http://www.sytelco.com/SCC/CM"><r><c i="0" n="AutoWrap" m="true" d="True" /></r></MagicXMLDocument>
For an inbound campaign, this will only update the campaign database if the call has been bound to a record in the database, for example via the Scripter CLI Record Lookup step.
Outbound skills-based routing
(See also Skills Based Routing (Outbound) )
Outbound skills-based routing is achieved by making agents with a particular skill members of a queue created for that skill. An agent with multiple skills may be a member of more than one queue and queues may be set to overflow to other queues or to fail with a predefined abandon outcome.
A queue address may be defined
- for a particular list using the Queue address for this list setting, or
- on a per record basis using the Queue address from column setting
Calls that fail to be connected may be set to abandon by entering a non-zero value in the LFO abandon outcome field (LFO = Last Failure Outcome).
Windows client details

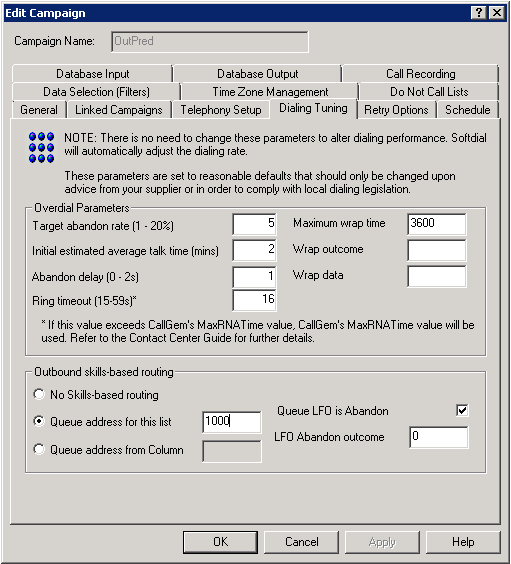

Fig. 2 - Dialing Tuning - Windows client
The configuration options for the Windows client are the same as for the Web client described above, except:
For Outbound skills-based routing, calls that fail to be connected may be set to abandon by checking the Queue LFO is abandon checkbox, with the abandon outcome as defined in the LFO Abandon outcome field.
